REAL-TIME MONITORING
Live System Insights
Access continuous data
across all your Coolblock tanks
Real-time
Monitoring

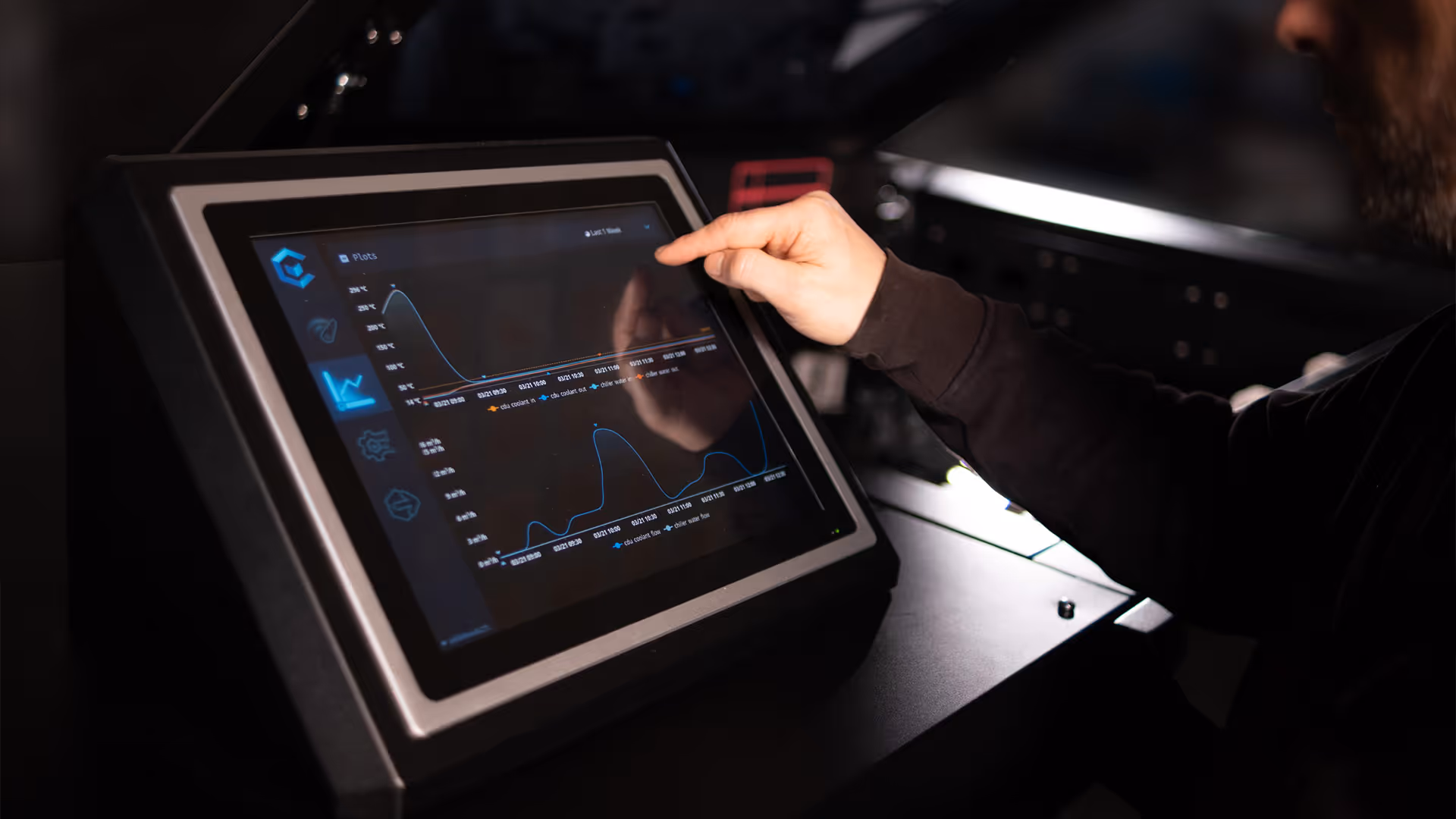

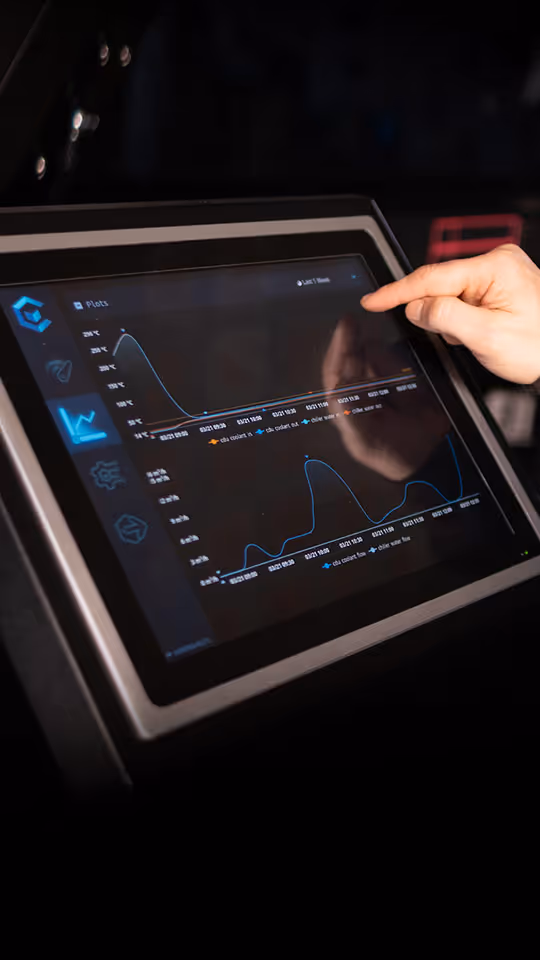

Monitor your Coolblock tanks in real-time, receive instant alerts for any incidents, and access detailed analytics to optimize your cooling strategy. With remote management capabilities, you can ensure optimal efficiency and respond to issues promptly from anywhere, minimizing downtime and reducing operational costs.
01
Real-time Monitoring
Advanced Control
& Monitoring System
The immersion cooling system features a sophisticated control and monitoring architecture, designed to ensure real-time performance optimization, operational stability, and predictive maintenance. A network of high-precision sensors, strategically positioned within the heat exchanger and the Cooling Distribution Unit (CDU), continuously monitors:
Dielectric
coolant
Facility
water
Coolant
conductivity
System
integrity
02
Real-time Monitoring
Powering Tomorrow,
Performance that lasts
01
Dielectric
coolant
Doubled Capacity

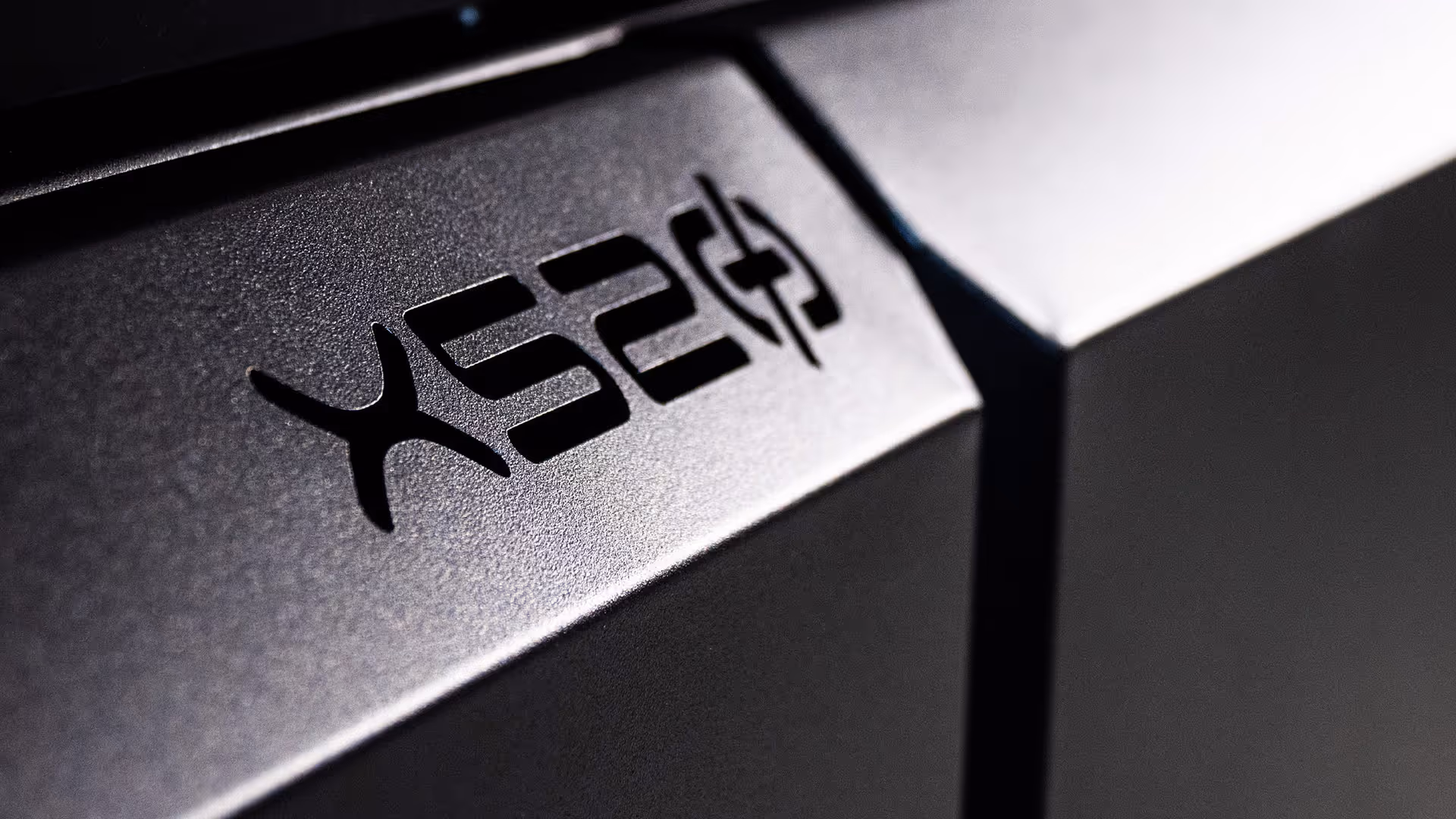

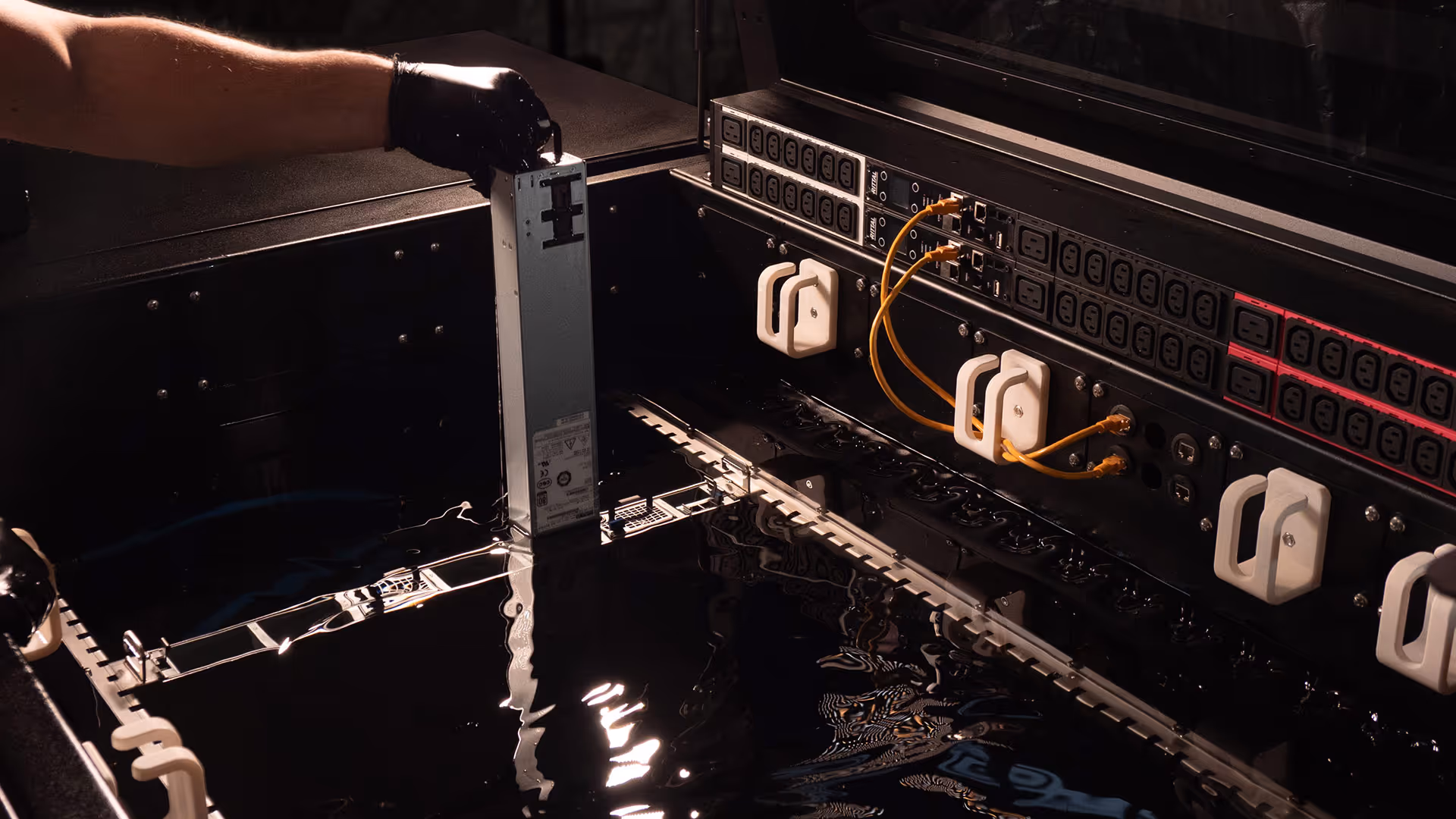

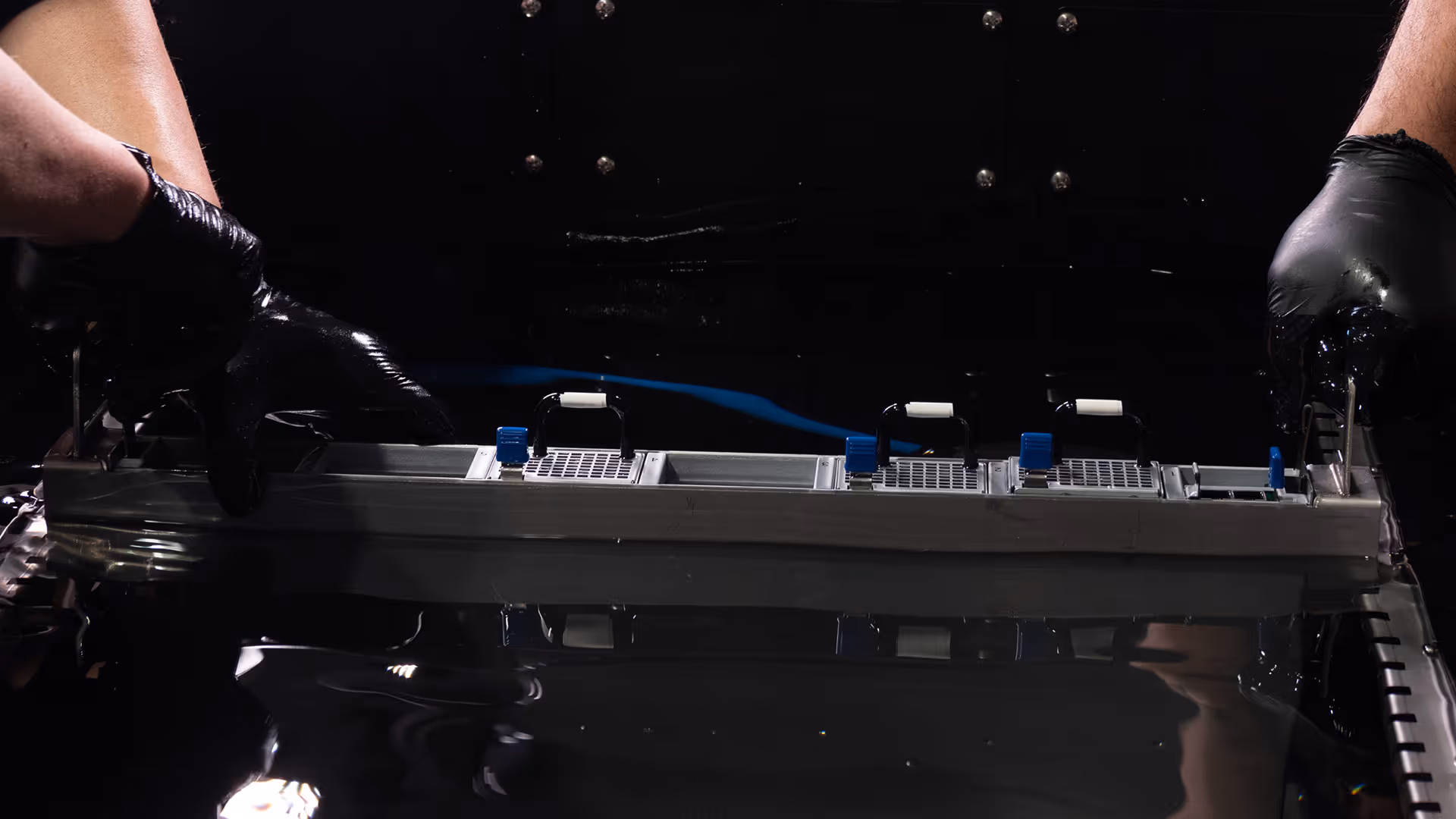

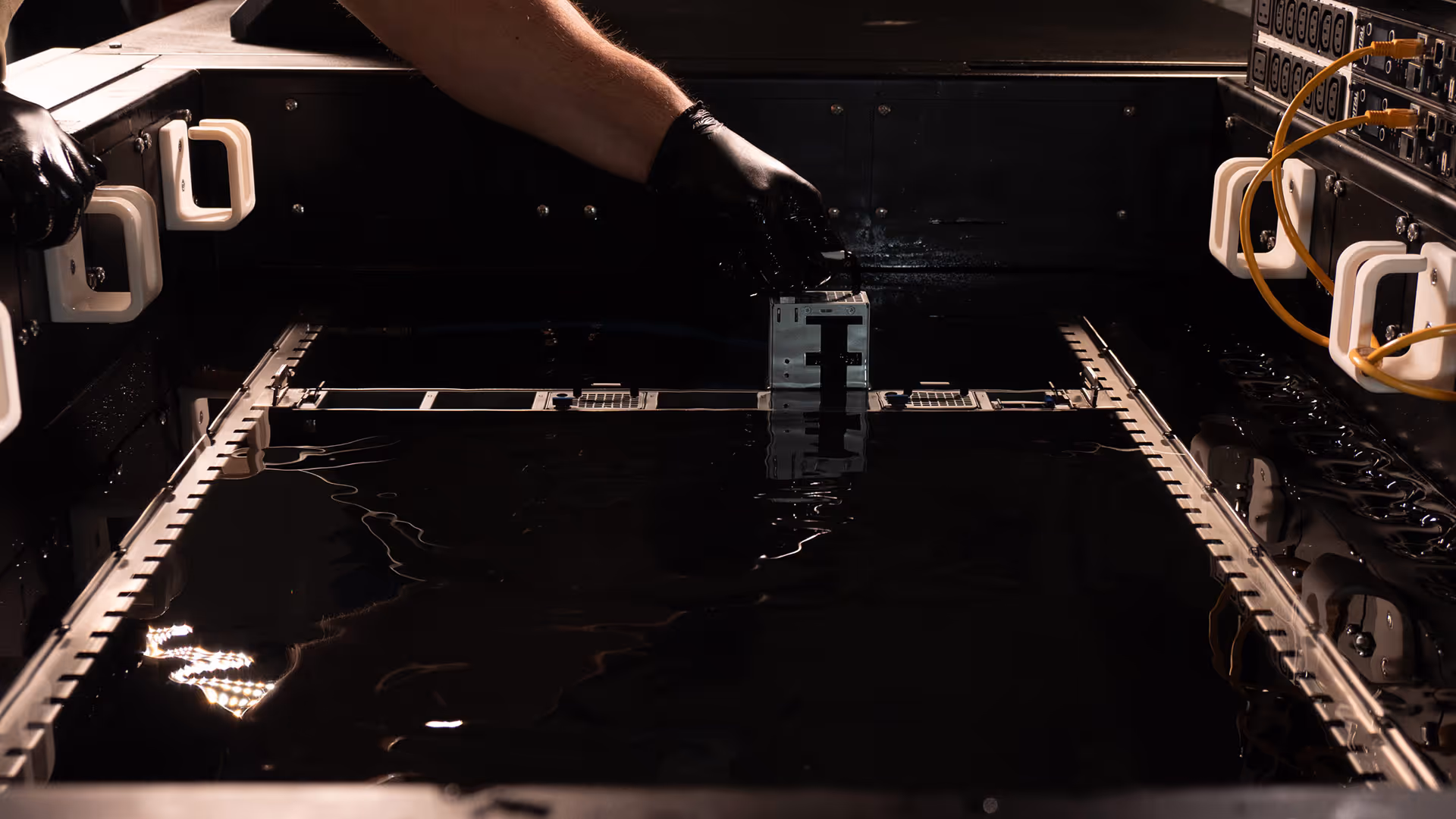

The X-520 immersion cooling tanks can host 22 OU of IT equipment with a total consumption capacity of 50Kwatt. Aprox 2.2Kwatt/OU can be supported.
Dielectric
coolant
Up to 10 kW of Compute Density
02
Coolant
conductivity
Workload Power
The X-Series immersion cooling tanks are designed to support dense server deployments for any compute application.
Coolant
conductivity
Innovation that Lasts
03
System
integrity
Monitoring System

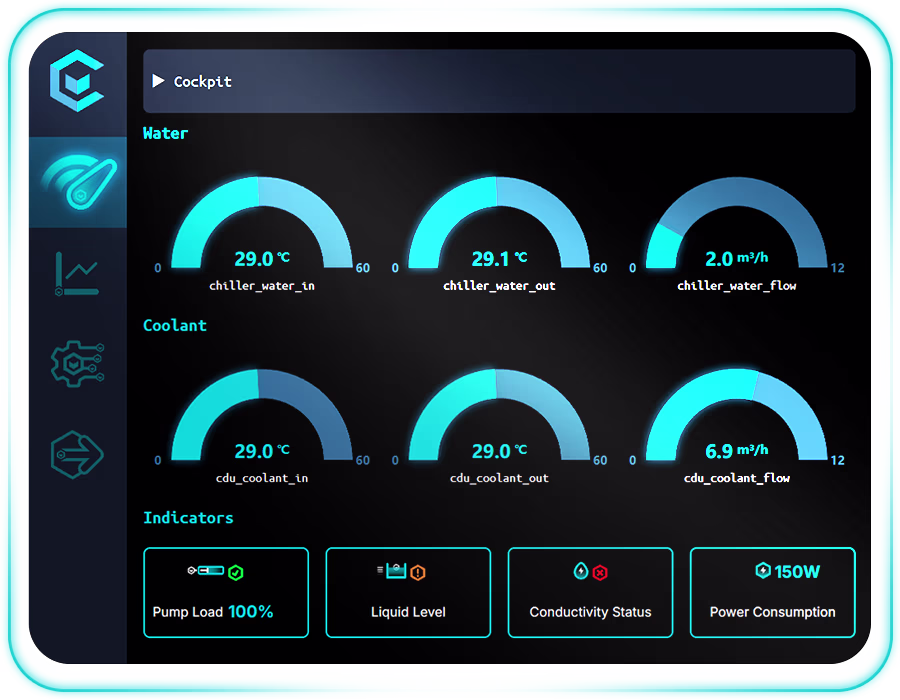

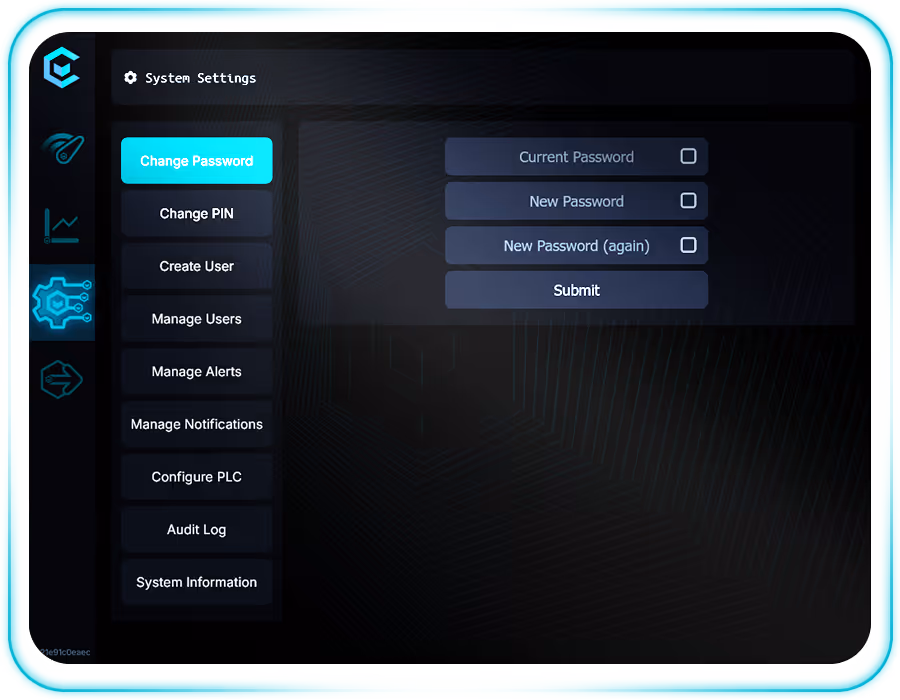

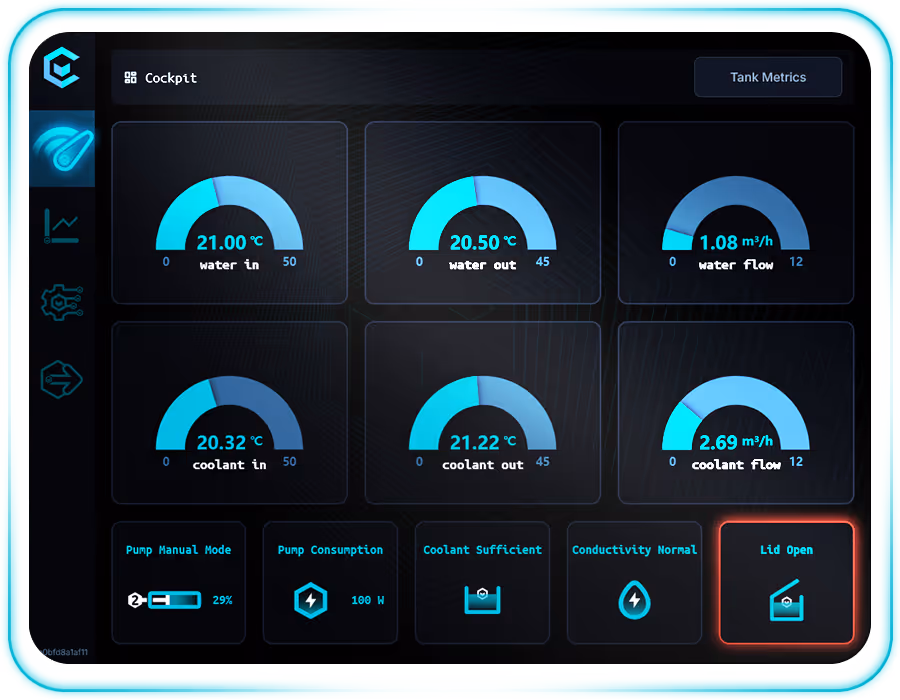

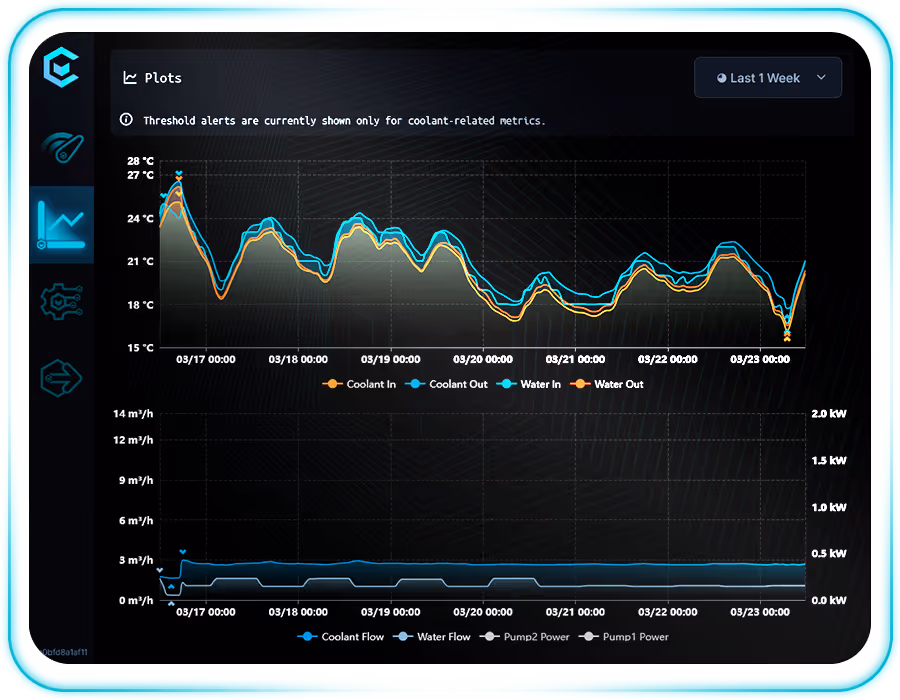

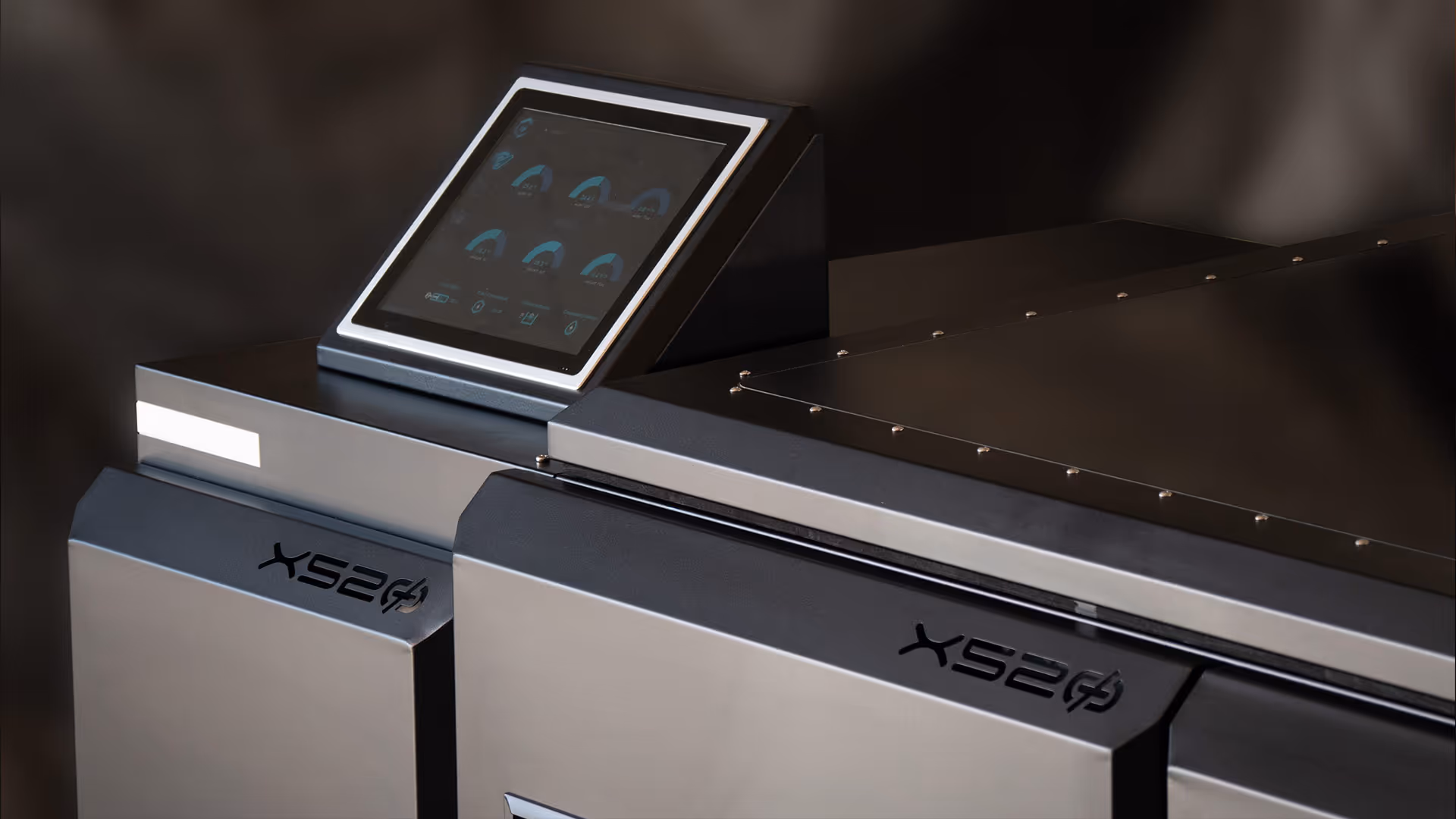

Our Coolblock Dashboard puts you in control of your data center's cooling performance
System
integrity
While minimizing IT failures
Dielectric
coolant
Facility
water
Coolant
conductivity
System
integrity
04
Real-time Monitoring
Intelligent Control
& Communication
At the core of the system, the Programmable Logic Controller (PLC) serves as the main brain, integrating data from all sensors and dynamically adjusting operations to maintain system stability. These real-time measurements are processed by an advanced Master Controller, which maintain constant information flow from all sensors. The Controller is directly linked to a dedicated industrial grade PLC.
High-Speed
Industrial Communication
For seamless, high-speed industrial communication, the PROFINET protocol is used to facilitate data exchange between:
• The Siemens S7-1200 PLC and the IFM Controller for sensor data processing and system diagnostics.
• The Siemens S7-1200 PLC and Grundfos pumps, allowing real-time flow control and pump operation adjustments.
PLC - System
Operations Managing

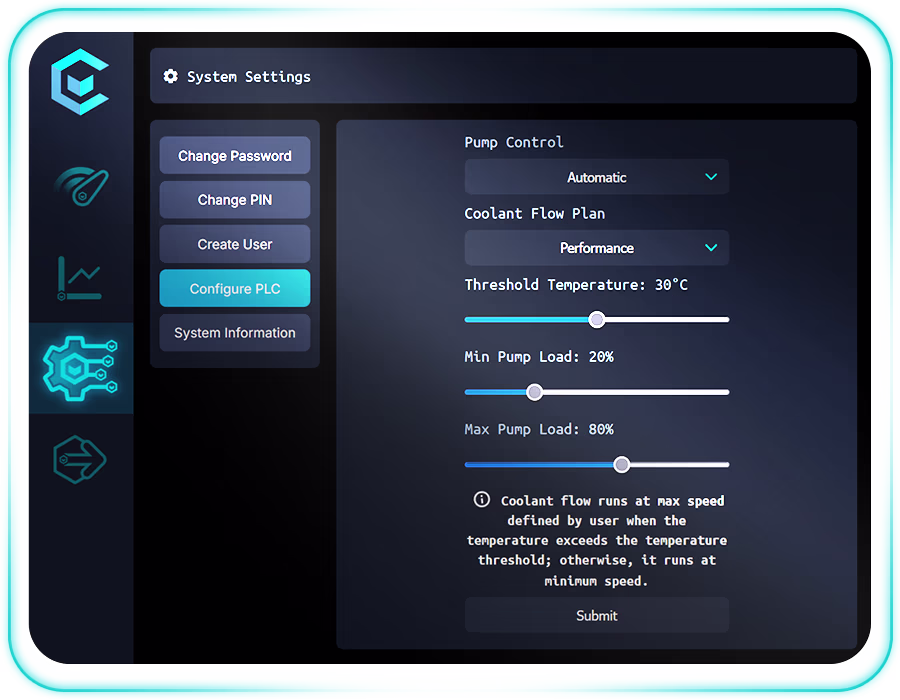

The PLC dynamically manages system operations based on predefined cooling parameters, ensuring optimal cooling efficiency, energy management, and system longevity.
The Grundfos pumps operate under bidirectional communication with the Siemens S7-1200 PLC, precisely regulating fluid dynamics and maintaining system stability.
PLC
Control Ecosystem
This fully integrated, PLC-driven control ecosystem guarantees fast data transfer, seamless automation, real-time diagnostics, and enhanced system reliability, making it an essential component of high-performance immersion cooling solutions.
